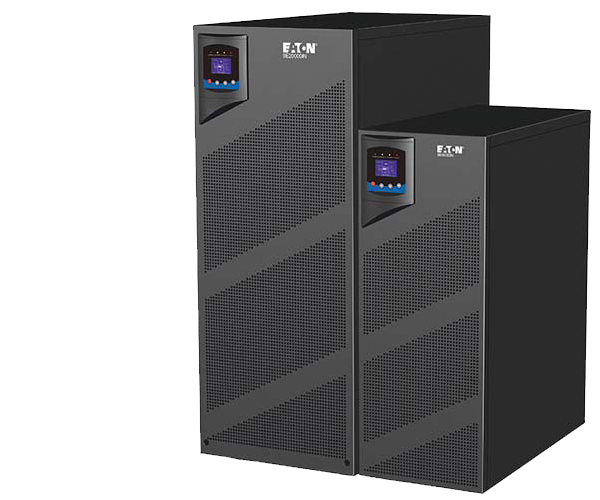

EATON 9145 UPS - 1KVA - 20KVA


  • Robust design and on-line double conversion topology assures maximum reliability
  • Wide input-voltage range appropriate for the harshest electrical environments
  • 0.9 output power factor on 6 - 20 KVA models
  • Automatic bypass for fault-tolerance
  • Cold start on battery power enables portability
  • XL models for long runtime performance
  • Adjustable battery quantity optimises sizing
  • Intuitive front-panel LCD user interface for consistent status indication
  • Inbuilt RS-232, USB & Intelligent Slot communication ports
  • WINPOWER software suite bundled

Real compatibility

  • Active power factor correction (PFC) provides 0.99 input power factor and <5% iTHD, thus eliminating interference with other critical equipment in the same network and enhancing compatibility with generators.
  • The 93E is optimised for protecting modern 0.9 p.f. rated IT equipment without the need to oversize.

True reliability

  • Patented Eaton Hot Sync technology makes it possible to parallel up to four UPSs to increase availability or add capacity.
  • The technoligy enables load sharing without any communication line, thus elimination single point of failure.
