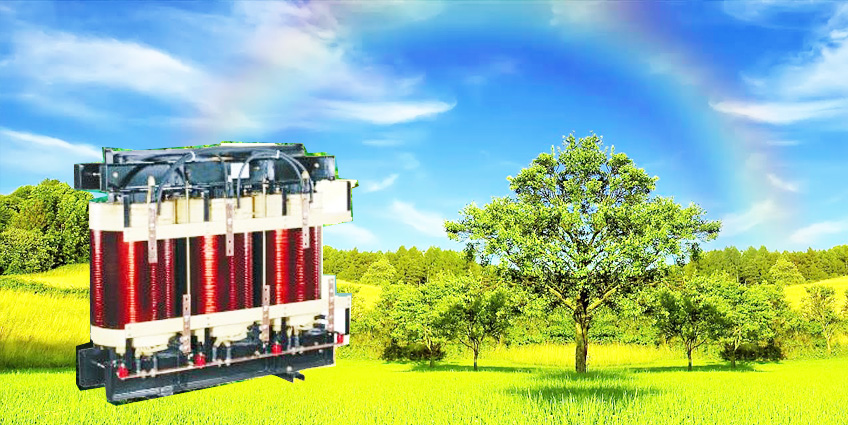

Ultra / Isolation Transformers

Technical Specifications: (IS2026 / 1180 / 335 / 2099)

  • Input Voltage : 110/230/400/415V
  • Output Voltage : 1:1 Step up, step down or as required
  • Acceptable Input : 10% of rated voltage
  • Line Frequency : 47 - 53 Hz
  • Regulation : 3-5%
  • Leakage Current : Better than one amps
  • Dielectric Strength : 2500 V for 1 minute
  • Resistance : Greater than 1000 Meg Ohms
  • Efficiency : better than 97%
  • Noise Ratio : better than 70%
  • No Load current : Less than 5%
  • Cooling : Air / Oil Cooled
  • Connection : Delta / Star or Star / Star for three phase
