Advanced power protection for:

  • IT and networking environments
  • Servers, networking gear
  • Telecommunications, VolP, security systems
  • Medical systems
  • Diagnostics and medical screening
  • Patient record archives
  • Manufacturing systems
  • Chip fabrication
  • Pharmaceutical production
  • Chemical processing

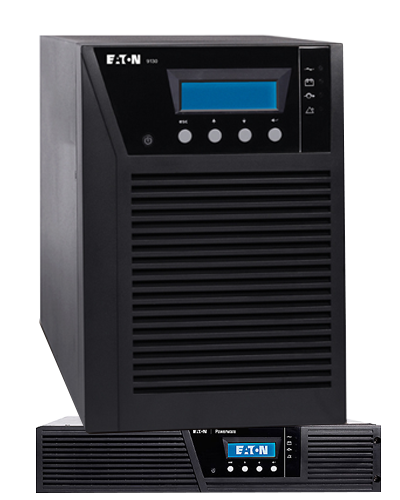

EATON UPS 9130 - 700 - 6000 VA

Double conversion UPS


Highest power performance

  • Double conversion topology. The 9130 constantly monitors power conditions and regulates voltage and frequency. Even when presented wiht the most servere power problems, the UPS's output remains within 3% of nominal voltage.
  • More real power. High 0.9 output power factor enables the 9130 to provide its full power capability to modern IT equipment.
  • Highest efficiency to reduce utility and cooling spending. The 9130 can provide up to 95% efficiency in online double conversion mode and up to 98% in high-efficiency mode.

Unmatched reliablity

  • The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.
  • Stronger, longer battery life. Eaton ABM battery management technology uses an innovative three-stage charging technique, that only recharges the battery when necessary, so the battery experiences less corrosion and service life is prolonged by up to 50%.
  • Batteries can be hot-swapped without ever having to shut down connected equipment.
  • Possiblility to add more runtime at any time with up to four external hot-swappable battery modules to run systems for hours if necessary.
  • Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems and processes thanks to a capability to control load segments (available up to 3kVA).

Outstanding versatility

  • One platform, two factors, dozens of choices, Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, Compact PC.
  • Enhanced configuration capability through easily navigated multilingual graphical disply.
  • Remote monitoring. The 9130 comes complete with the Eaton Software Suite CD including SNMP-compatible power management software providing control and vislibility over all your UPS systems.
  • Connectivity options are avaiable for almost any network environment.
